How a backyard pendulum saw sliced into a Bronze Age mystery

Author: Bruce Bower / Source: Science News

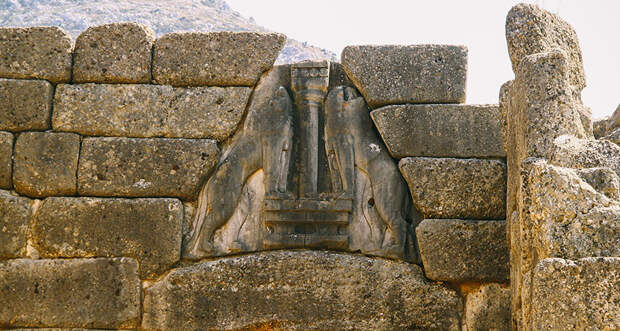

Lion Gate sculpture — ENIGMATIC ENGINEERING An ancient sculpture known as the Lion Gate relief contains marks in a column (center of image) that may have been made by a pendulum saw. The lions, now headless, stood above the main entrance to the citadel of Mycenae, in what is now Greece.

Nicholas Blackwell and his father went to a hardware store about three years ago seeking parts for a mystery device from the past. They carefully selected wood and other materials to assemble a stonecutting pendulum that, if Blackwell is right, resembles contraptions once used to build majestic Bronze Age palaces.

With no ancient drawings or blueprints of the tool for guidance, the two men relied on their combined knowledge of archaeology and construction.

Blackwell, an archaeologist at Indiana University Bloomington, had the necessary Bronze Age background. His father, George, brought construction cred to the project. Blackwell grew up watching George, a plumber who owned his own business, fix and build stuff around the house. By high school, the younger Blackwell worked summers helping his dad install heating systems and plumbing at construction sites. The menial tasks Nicholas took on, such as measuring and cutting pipes, were not his idea of fun.

But that earlier work paid off as the two put together their version of a Bronze Age pendulum saw — a stonecutting tool from around 3,300 years ago that has long intrigued researchers. Power drills, ratchets and other tools that George regularly used around the house made the project, built in George’s Virginia backyard, possible.

“My father enjoyed working on the pendulum saw, although he and my mother were a bit concerned about what the neighbors would think when they saw this big wooden thing in their backyard,” Blackwell says. Anyone walking by the fenceless yard had a prime view of a 2.5-meter-tall, blade-swinging apparatus reminiscent of Edgar Allan Poe’s literary torture device.

HEAVE HO Archaeologist Nicholas Blackwell, left, and his brother-in-law Brandon Synan demonstrate how to use a rope to operate a pendulum saw. They tested the rock-cutting device on a piece of limestone in the Virginia backyard of Blackwell’s father, who was instrumental in designing and building the contraption.

N. Blackwell/Antiquity 2018

No one alive today has seen an actual Bronze Age pendulum saw. No frameworks or blades have been excavated. Yet archaeologists have suspected for nearly 30 years that a contraption capable of swinging a sharp piece of metal back and forth with human guidance must have created curved incisions on large pieces of stonework from Greece’s Mycenaean civilization. These distinctive cuts appeared during a century of palace construction, from nearly 3,300 years ago until the ancient Greek society collapsed along with a handful of other Bronze Age civilizations. Mycenaeans built palaces for kings and administrative centers for a centralized government. These ancient people spoke a precursor language to that of Classical Greek civilization, which emerged around 2,600 years ago.

In Blackwell’s view, only one tool — a pendulum saw — could have harnessed enough speed and power to slice through the especially tough type of rock that Mycenaeans used for pillars, gateways and thresholds in palaces and some large tombs.

Kings at the time valued this especially hard rock, known as conglomerate, for the look of its mineral and rock fragments, which form colorful circular and angled shapes.

In the early 20th century, archaeologists excavating a Mycenaean hill fort called Tiryns first noticed curved cut marks on the sides of pillar bases and other parts of a royal palace. The researchers assumed that ancient workers sliced through conglomerate blocks with curved, handheld saws and a lot of elbow grease.

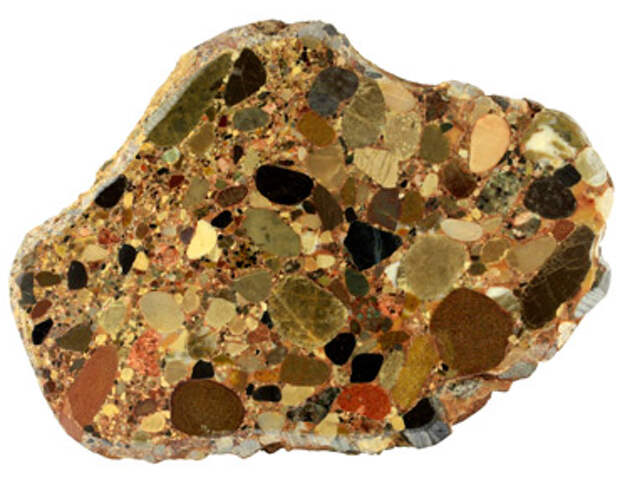

cross section of a conglomerate — Mycenaeans cut into a type of rock with colorful mineral fragments, known as conglomerate, to build gateways and pillars for palaces and tombs.

Some investigators still suspect that handheld saws make more sense than a swinging pendulum blade. But scholarly opinions began to change as similar marks were found on stonework at other Mycenaean sites, including the fortified town and citadel of Mycenae. Separate reports in the 1990s by German archaeologists proposed that a pendulum device produced curved Mycenaean masonry marks. One of the researchers estimated that a pendulum saw would have needed to swing from a massive arm, between 3 meters and 8 meters high, to create the observed curved cuts. His calculations rested on an assumption that the curved saw marks represented segments of perfect, geometric circles, which in some cases would have required the wide arc of an especially tall pendulum.

Blackwell doubted that Mycenaeans used pendulum saws as tall as 8 meters, the equivalent of about 2½ stories. But there was only one way to find out. His experiments, described in the February Antiquity, indicate that a wooden contraption supporting a blade-tipped swinging arm had to reach only about 2½ meters high to create stone marks like those at Tiryns and Mycenae.

The Indiana researcher’s homemade pendulum saw “is the most persuasive reconstruction of a Mycenaean sawing machine that was used to cut hard stones, especially conglomerate,” says archaeologist Joseph Maran of the University of Heidelberg in Germany. Only one other life-size model of a pendulum saw exists.
