If you’ve ever wondered why an op amp has the little plus and minus symbols on it, its because at the heart of it, the device is a differential amplifier. The problem is that — ideally, at least — it has infinite gain so it works like a comparator and that’s not what you usually want.

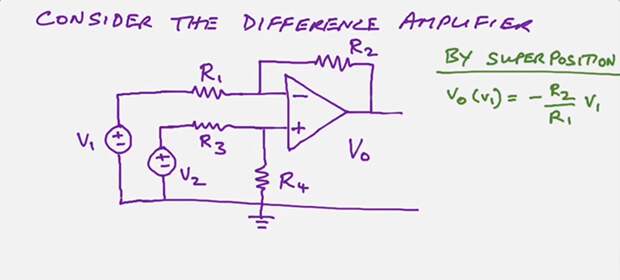

So we put resistors around the thing to constrain it and get useful amplification out of it. [Stephen Mendes] does the analysis for you about how the standard configuration for a differential amplifier works. He assumes you know the stock formulae for the inverting and non-inverting amplifier configurations and uses superposition.[Stephen] mentions that’s the easiest way to do it and then goes on to do it sort of how we would do it as a check. We think that’s the easier method, but maybe its a matter of preference. Either way, you get the right answer.
With superposition, you basically ignore one input at a time. This reduces the circuit into an inverting amplifier when you short one power source to ground and a non-inverting when you short the other one. Superposition tells you that the real answer is the sum of those two answers.
The other way — we hate to call it the easier way — is to remember two simplifying assumptions about op amps. First, assume the op amp will do whatever it can do to…
