Author: Maya Posch / Source: Hackaday
The increase in network-connected devices the past years has been something of a dual-edged sword. While on one hand it’s really nice to have an easy and straight-forward method to have devices talk with each other, this also comes with a whole host of complications, mostly related to reliability and security.
With WiFi, integrating new devices into the network is much trickier than with Ethernet or CAN, and security (e.g. WPA and TLS) isn’t optional any more, because physical access to the network fabric can no longer be restricted. Add to this reliability issues due to interference from nearby competing WiFi networks and other sources of electromagnetic noise, and things get fairly complicated already before considering which top-layer communication protocol one should use.

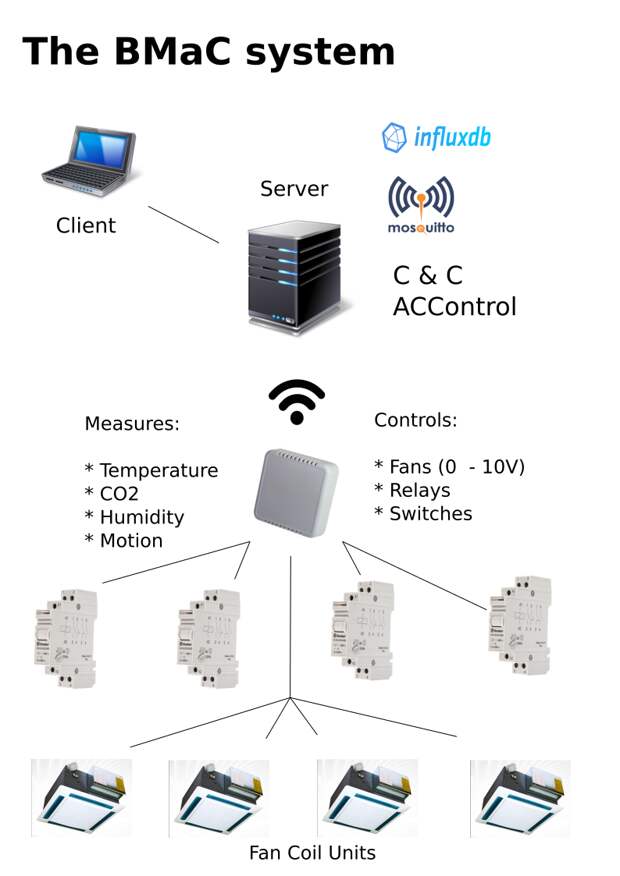

In this article we’ll be looking at implementing such a network-based system, securing a WiFi network with TLS, and the use of MQTT in combination with a proxy. I’ll illustrate this using experiences and lessons learned while working on this Building Management and Control (BMaC) project that I covered in a previous article.
Getting MQTT into your system
Message Queuing Telemetry Transport (MQTT) is a small, binary protocol that was developed by Andy Stanford-Clark of IBM and Arlen Nipper of Cirrus Link in 1999. Its version 3.1 was submitted in 2013 IBM to OASIS for standardization. Another version of MQTT is MQTT-SN, which is designed for lower-bandwidth, non-TCP networks, such as Zigbee, UDP and Bluetooth.
Due to its compact size and simple, client-server architecture, it is highly suitable for connecting larger and smaller networks of sensors, especially in high-latency, low bandwidth situations.
It uses a subscribe-publish model, where clients can subscribe to topics on which others can publish messages. These messages can be persistent, have guaranteed delivery and (as of version 5) can automatically expire if they cannot be delivered.The obvious advantage of MQTT is that it supports everything from always-online, high-bandwidth clients, to low-powered, remote sensor nodes which just wake up every week, dial into a satellite link and send some sensor readings while updating their calibration settings from data which they receive at the same time from some other client.
The use of MQTT (with the Mosquitto MQTT broker) in the BMaC project was initially more of a coincidence, with us using it mostly because an MQTT client was already integrated into the framework we were using on the microcontrollers. None of us had really thought about the advantages or disadvantages of MQTT over any alternatives. Now, years later, it’s easy to see why MQTT was the right choice. While running it on an internal, TCP-based network, we got the guaranteed delivery aspect of TCP along with its built-in checksum verification, with the MQTT protocol itself putting no constraints on the payload it can carry, whether it be text-based or binary.
Real competition for MQTT does not really exist. AMQP is also fairly popular, but it targets desktop and server systems in an enterprise setting, and doesn’t really scale down to RAM-constrained 8-bit microcontrollers. Further, AMQP also defines an encoding scheme for the payload, whereas MQTT leaves one free to use whichever encoding or serialization scheme one wishes to use.
With BMaC we could thus develop our own payload format that would be sent to and from the ESP8266-based nodes. This resulted in a compact, binary format using just a few bytes at most that sufficed to configure nodes over MQTT as well as adjust the fan and relay settings.
Securing the System
The best way to secure a system is through the practice of security in depth. That means that every part that could be exploited should be secured in some fashion. Assuming a system like that of BMaC, this means that the physical hardware is all inside an office building, which has its own security system installed.
This security system can be…
